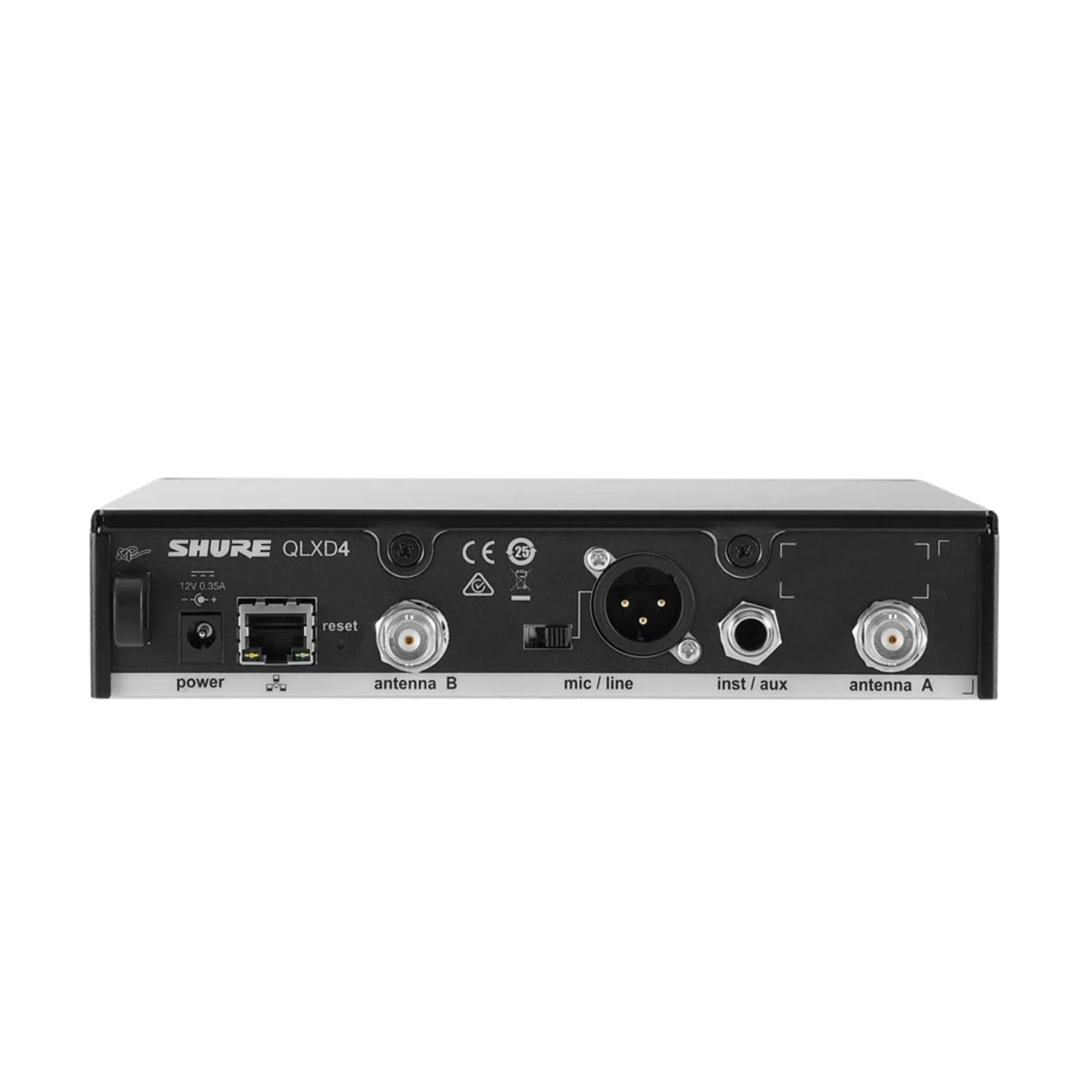

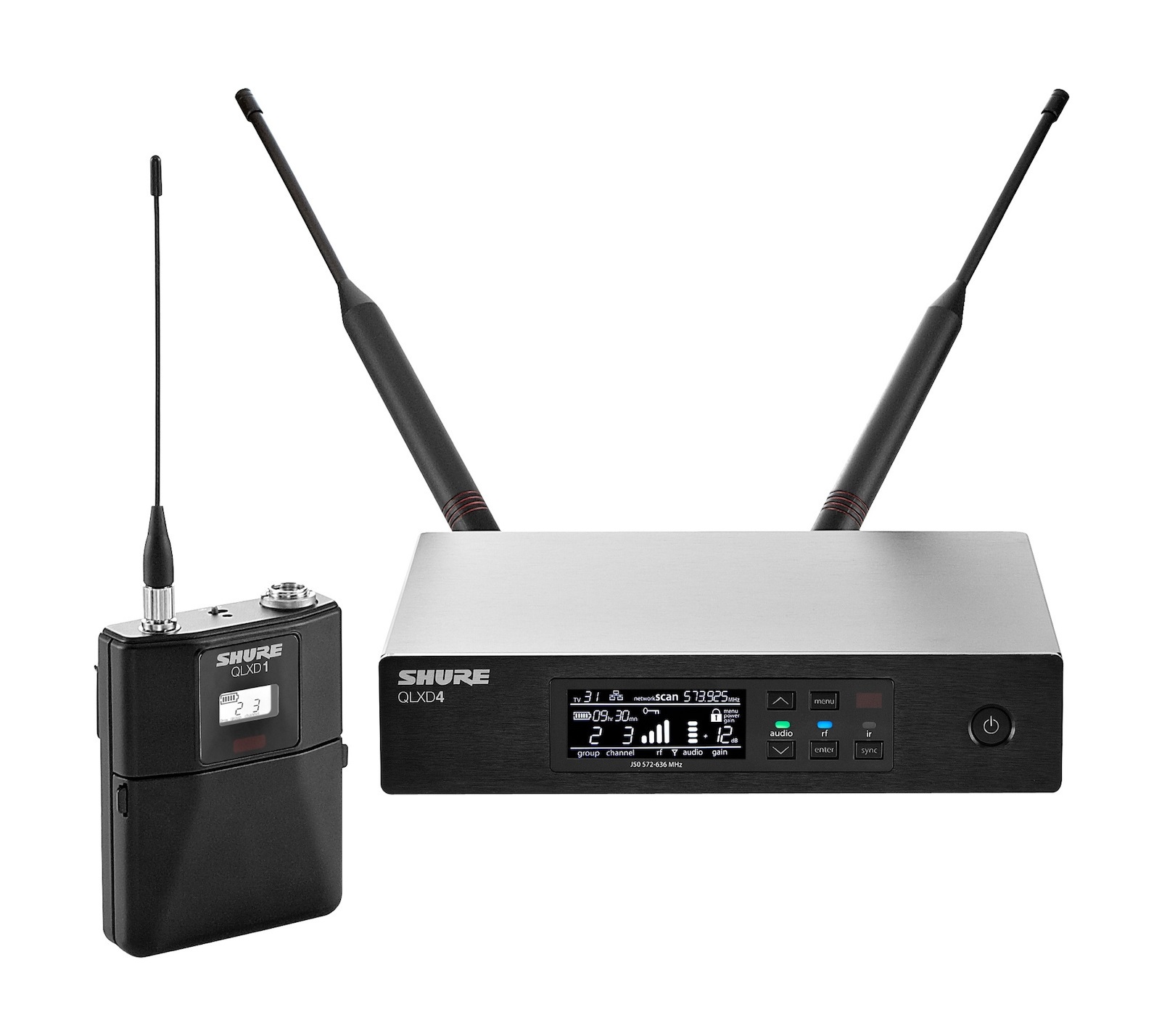

SHURE QLXD14 Combo System with QLXD1 Bodypack and QLXD4 Receiver Overview
Specifications:
64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES 256-bit encryption for secure wireless transmission
Up to 60 dB of adjustable audio gain
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
Detachable ½ wave antennas
Mic / line switchable XLR output
¼" Instrument output
Durable aluminum construction with brushed finish
Over 120 dB of dynamic range: no transmitter gain adjustments needed
AES 256-bit encryption for secure transmission
Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
External charging contacts for docked charging
Backlit LCD with easy to navigate menu and controls
Selectable display mode showing group/channel, frequency, or battery runtime
4-Pin male mini connector (TA4M)
Rugged metal construction
Detachable ¼ wave antenna
Frequency and power lockout
